ROTARY
ROTARY-1000

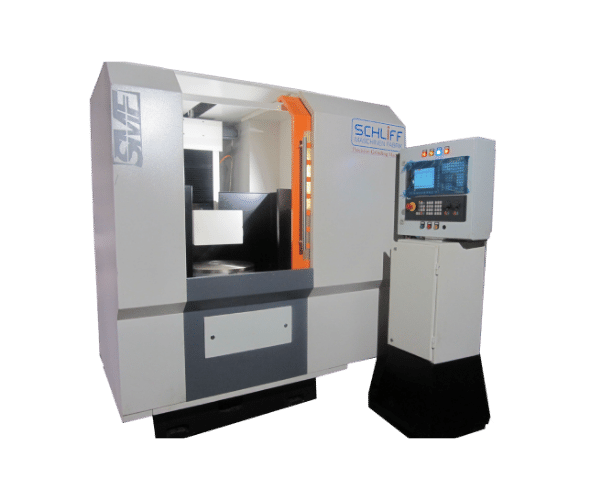

High Precision Surface Grinding Machine
Nam ut consequat enim. Fusce tempor tempus ligula eget volutpat. Donec ullamcorper, nisl eu sodales auctor, ligula odio aliquet purus, a mattis tortor urna et tellus. Quisque est arcu, faucibus eget urna quis, tincidunt venenatis odio. Aenean bibendum diam sit amet sapien.
- High precision execution, VVV accuracies, as per DIN 8632.
- Rigid construction clearing full passage for loading component on table
- Electro - mechanical table drive
- High precision and high power at spindle
- Close pole pitch electromagnetic chuck with power variator
- Hand-tacho/ MPG mode of operation for precise controls, of 0.001 mm in feed.
- Auto grinding cycle through NC Controls.
- DIGITAL READOUT of 0.001 mm resolution for vertical/ G infeed axis.
- Spindle is rigid enough to take Diamond & CBN wheels
- Variety of Dressing attachment can be adopted
- High productive machine compare to oscillating type
- Excellent parallelism & surface finish
| DESCRIPTION | UNIT | HR 1000 |
| Rotary magnetic chuck dia. | mm | 1000 |
| Maxi grinding radius | mm | 500 |
| Distance of table surface to spindle surface center | mm | 700 |
| Rotary Table speed | r.p.m. | 10 ~ 60 |
| Rotary Table Motor Power | KW | 5.5 |
| Spindle motor | KW | 10 |
| Spindle speed (50/60Hz) | r.p.m. | 1450 |
| Auto downfeed Motor power | W | Servo 1500 |
Vertical hand wheel downfeed per revolution | MPG/mm | x1, x5, x10 / |
| 0.1, 0.5, 1 | ||
Vertical hand wheel downfeed per graduation | MPG/mm | x1, x5, x10 / |
| 0.001, 0.005, 0.01 | ||
| Wheel size (dia x width x bore) | mm | φ 400 x 50 x 127 |
| Net weight / gross weight (approx) | kg | 9000 / 10100 |
| Packing size (LxWxH) | mm | 4500 x 3200 x 3000 |
